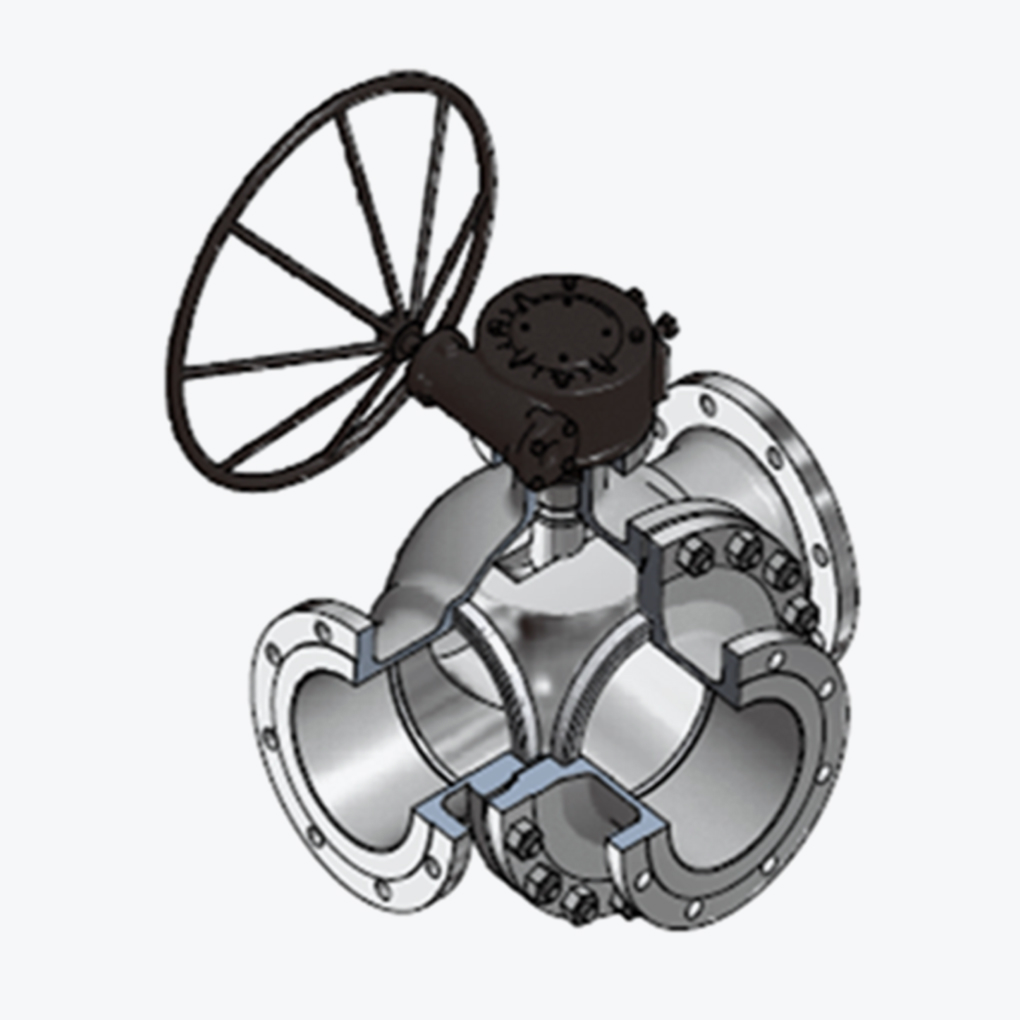

KSM-55 Series

Description

Full port or Reduce port design. Two-piece split body. Floating or Trunnion Mounted Ball. L-Port or T-Port. Anti blow-out proof stem. Anti-static device. ISO 5211 Mounting flange. Fire safe design.

Standard Specification

Pressure Rating	ASME CLASS 150 to CLASS 600
Service Temperature	Up to +500ºC
Available Size	NPS 1/2” to 8” (DN15 to DN200)
Design Code	ASME B16.34 / API 6D / ISO 14313 / ISO 17292
Face to Face	Manufacture Standard
End Flange	ASME B16.5
BW End	ASME B16.25
Test	API 598 / BS EN 12266 / API 6D
Fire Safety Test	API 607 / API 6FA
