KSM-70 Series

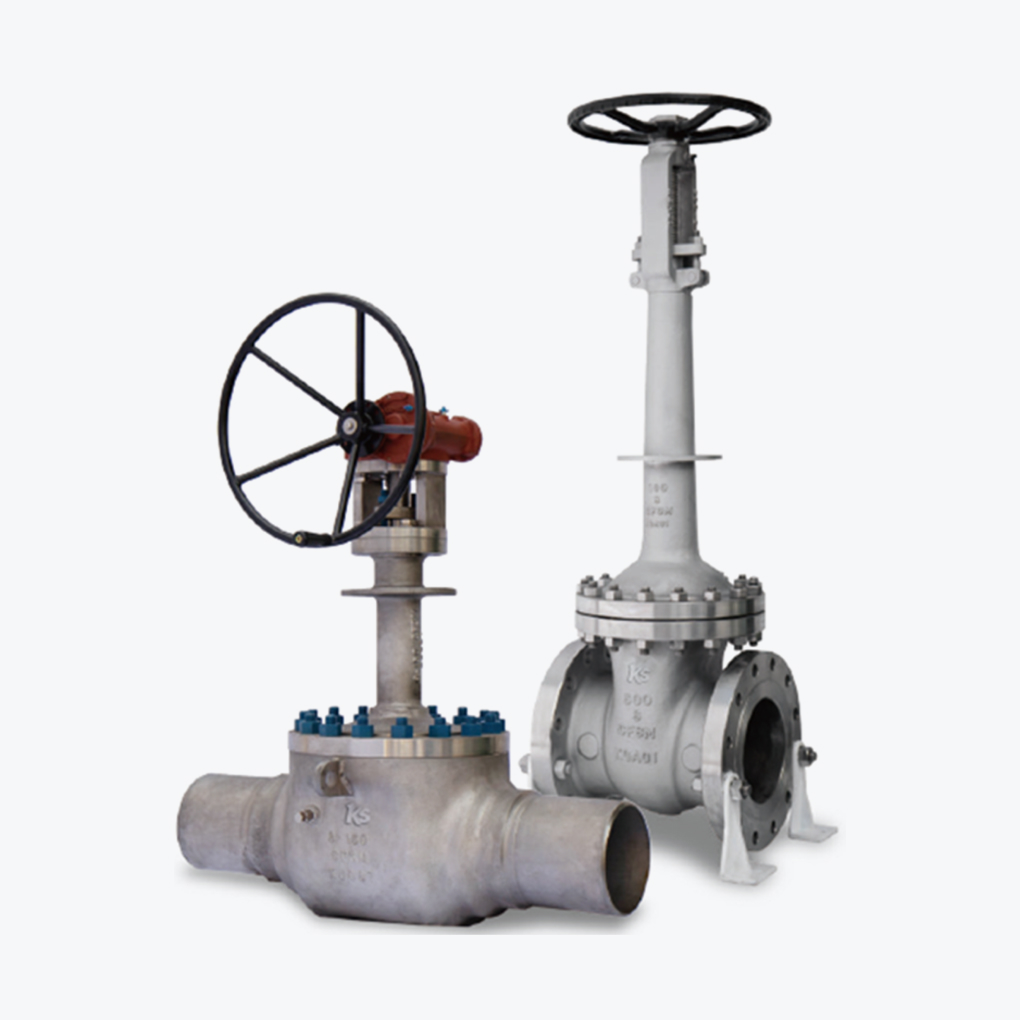

Cryogenic Valves
Description
Long extended bonnet. Low fugitive emission packing. Fire safe design. Locking device. Special packing option.
Standard Specification
| Pressure Rating | ASME CLASS 150 to CLASS 2500 |
| Service Temperature | Down to -196℃ |
| Available Size | NPS 2” to 30” (DN50 to DN750) |
| Design Code | BS 6364 / MSS SP-134 |
| Face to Face | ASME B16.10 |
| End Flange | ASME B16.5 & ASME B16.47 |
| BW End | ASME B16.25 |
| Test | API 598 / ISO 5208 |
| Available Products | Gate, Globe, Check, Ball Valves |
×
